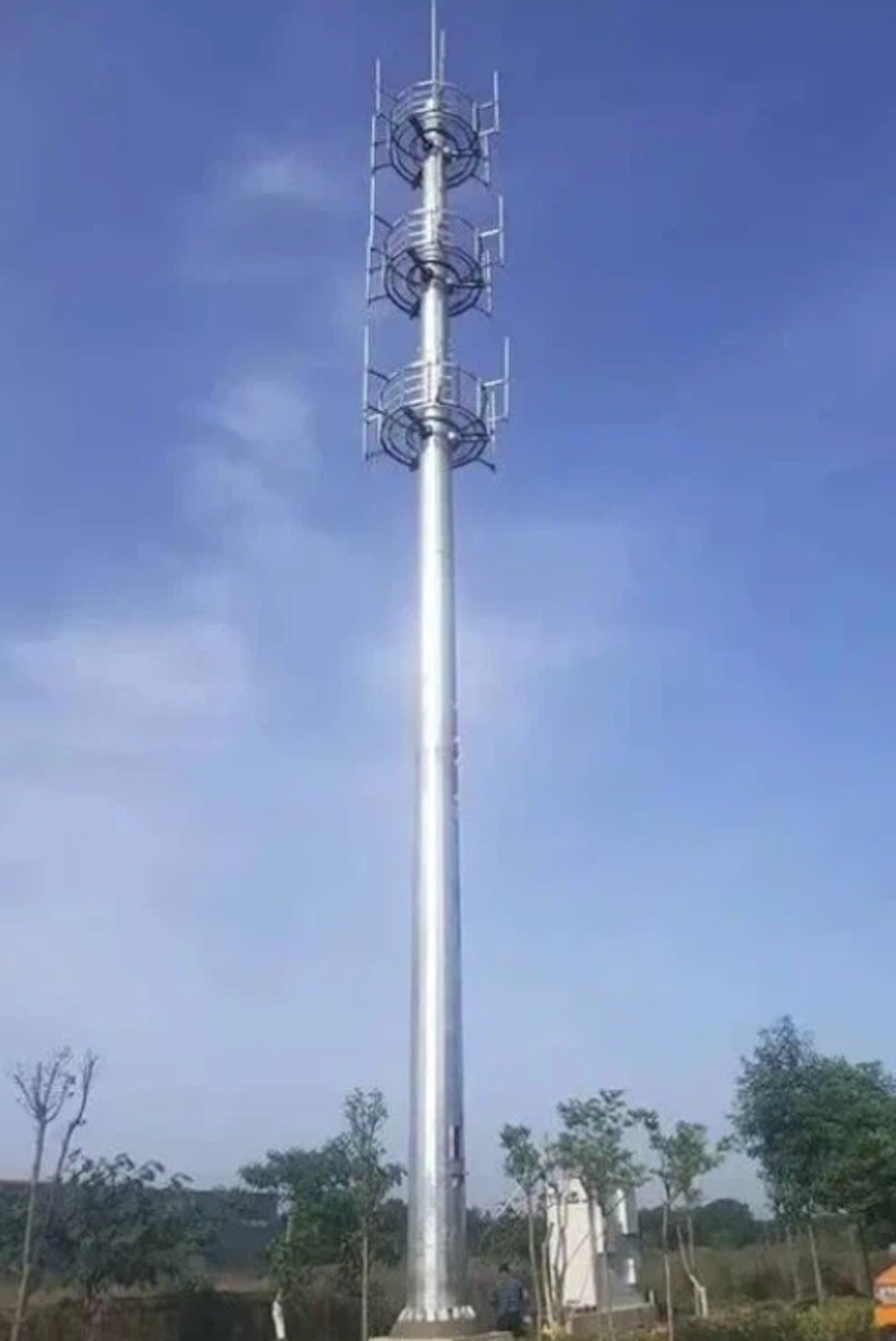

Wind and Earthquake Resistant Monopole Communication Tower with Corrosion-Resistant Galvanized Steel and Easy Installation
Structural Design
Overall Structure: Consists of a tower body and a top working platform. Door openings are located at the tower base and the working platform, respectively. The antenna bracket is fixed to the platform railing.
Tower Material: The main material is generally formed from bent steel plates.
Cross-sectional Shape: The tower cross-section is circular or polygonal, connected via internal flanges, external flanges, or plug-in connections.
Internal Structure: Ladders and resting platforms can be installed inside the tower, as can communication equipment, providing enhanced safety. Ladders can also be installed externally at the customer's option.
Product Specifications
Height Range: Monopole Communication Tower heights range from 10-90 meters, with common specifications including 15, 20, and 30 meters. Some products can reach up to 150 meters. We can also customize according to customer needs.
Connection: Tower segments can be connected via plug-in or flange connections.
Performance Features
Wind and Earthquake Resistance: The tapered steel tube structure offers low wind resistance and excellent wind and earthquake resistance. The tower's slope can be adjusted to suit the geological and climatic conditions of different regions. Some towers can withstand wind speeds of 30-50 m/s, or even higher.
Corrosion-Resistant and Durable: The surface is typically hot-dip galvanized with a thickness of at least 86 μm. Painting is also an option, effectively preventing steel corrosion and ensuring a service life of over 30 years.
Easy Installation: Prefabricated in the factory, it allows for quick on-site assembly. The tower requires a small footprint, typically only 1-2 m2, minimal foundation work, and a short construction period, which can be over 50% shorter than traditional towers.
Load Capacity: These towers have a certain antenna load capacity, with some towers capable of carrying antennas up to 500 kg. They can accommodate multi-band antennas and can flexibly expand equipment such as AAUs and RRUs to meet 5G high-band coverage requirements.
Connection:plug-in or flange connection;
Design:according to your requirements;
Height:10-30M,can customized;
Material:Q235B/Q355B/Q460/S235JR/S355JR/A36/GR50/GR60 or equivalent
Thickness:usually 4-20mm, can customized;
Package:Foam and tray,according to requirements;
Anticorrosion treatment:Hot dip galvanizing or painting, depending on customer's standards and requirements.
Application Scenarios: Monopole Communication Tower Suitable for a variety of scenarios, including urban green spaces, rooftops, and roads, it is an ideal choice for outdoor communication infrastructure. It can be used in base station construction to address issues such as poor or weak communication signals, and can provide support for 4G and 5G mobile communication networks.
Tower type:monopole communication tower; connection:Plug-in or flange connection; Design:according to your requirements; Height:10-30M,can customized; Material:Q235B/Q355B/Q460/S235JR/S355JR/A36/GR50/GR60 or equivalent Thickness:usually 4-20mm, can customized; Package:Foam and tray,according to requirements; Anticorrosion treatment:Hot dip galvanizing or painting, depending on customer's standards and requirements.
